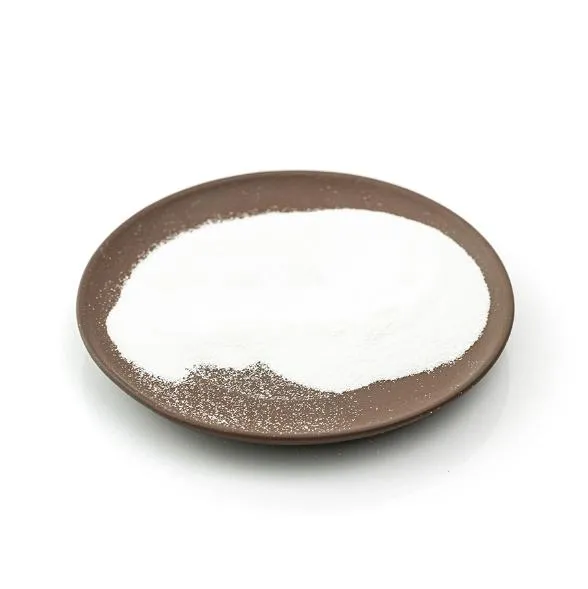

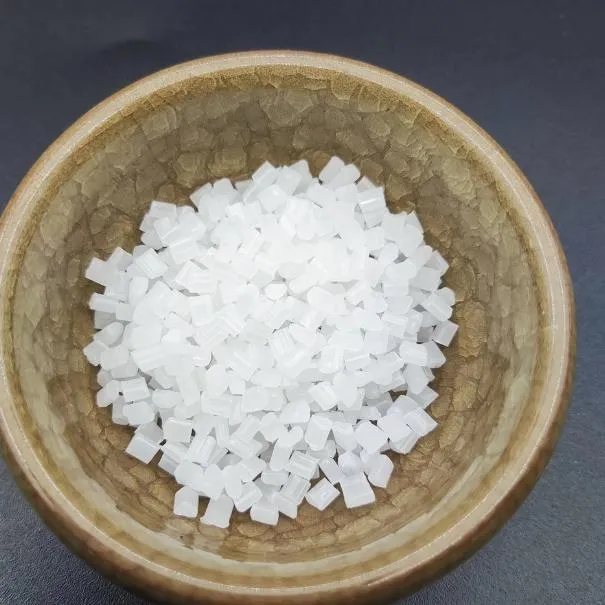

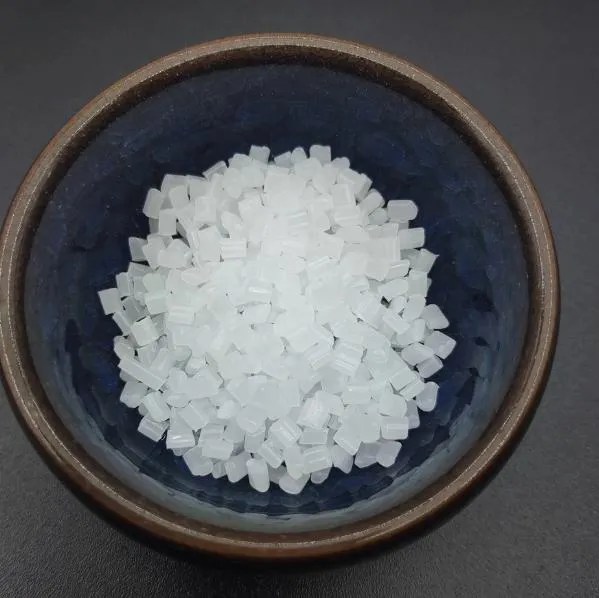

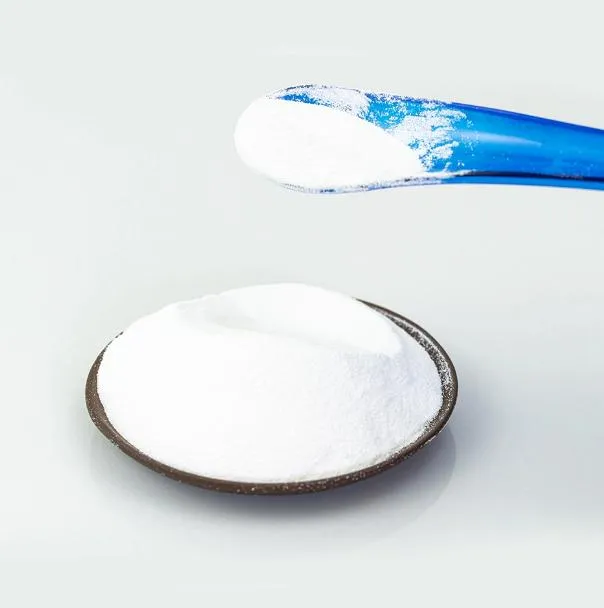

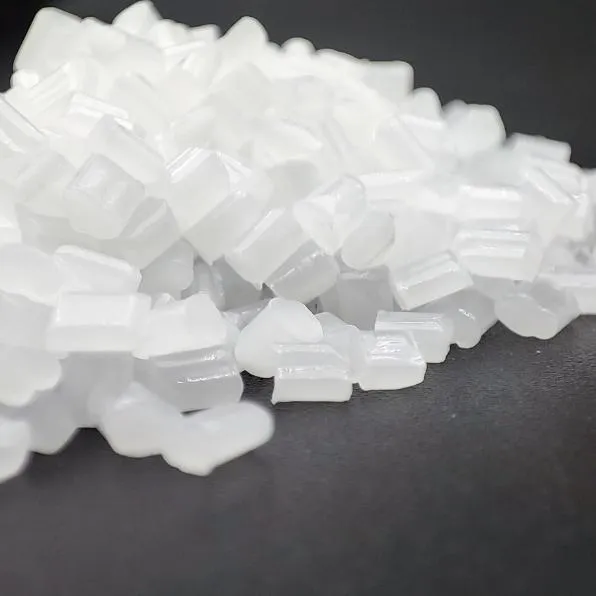

Polyvinyl chloride is high molecular compounds polymerized by vinyI chloride monomer(VCM) with structural element as CH2-CHCLn,degree of polymerization usually as 590-1500.In the process of re-polymerization ,affected by kinds of factors such as the polymerization process, reaction conditions, reactant composition, additives etc.it can produce eight different types of PVC resin performance is different. According to residual content of vinyI chloride in polyvinyl chloride resin, is can be divided into :commercial grade, food hygiene grade and medical application grade in appearance, polyvinyl chloride resin is white powder or pellet.
Polyvinyl chloride resin is widely used in production of polyvinyl chloride boardy leatheroid, paint and adhesive agents,tec. Paint and adhesive .Division according to application: 1.Building materials: such as UPVC tubing, UPVC pipes, panel and section bars. 2.Packing materials. 3.Electronic materials: such as electronic wires, cables,adhesive tapes and bolts. 4.Furniture and decorating materials,etc. 5.Others: leatheroid, medical disposable products, antiseptic paint,etc.
Polyvinyl chloride has the outstanding characteristics of abundant raw materials mature manufacturing process, low price, and wide range of uses. It has become the second largest general-purpose resin in the world after polyethylene resin. 29% of the world's total synthetic resin consumption. Polyvinyl chloride is easy to process and can be processed by molding, laminating, injection molding, extrusion, calendering, blow molding, etc. Polyvinyl chloride is mainly used to produce soft plastic products such as artificial leather, films, and wire sheaths, as well as hard plastic products such as plates, doors and windows, pipes and valves. Polyvinyl chloride is flame-retardant (flame retardant value above 40), high chemical resistance, mechanical strength And the advantages of good electrical insulation. But its heat resistance is poor, with a softening point of 80°C, it starts to decompose and change color at 130°C, and precipitate HCI.
Due to its high chemical stability, it can be used to make anti-corrosion pipelines, pipe fittings, oil pipelines, centrifugal pumps and blowers, etc. Polyvinyl chloride hard boards are widely used in the chemical industry to make linings for various storage tanks, corrugated boards for buildings, door and window structures, wall decorations and other construction materials. Due to its excellent electrical insulation performance, it can be used to manufacture plugs, sockets, switches and cables in the electrical and electronic industries. In daily life, polyvinyl chloride is used to make sandals, raincoats, toys and artificial leather! Paste/ emulsion Pvc Resin for artificial leather SG-3 is for films, hoses, leathers, wire cables and other general purpose soft products. SG-5 is for pipes, fittings, panels, calendaring, injection, moulding, profiles, and sandals. SG-7 / SG-8 is for bottles, sheets, calendaring, rigid injection and moulding pipes.
We have many high-quality factories with deep cooperation, which can provide you with high quality products and competitive prices. And we can also give discounts for bulk purchases.And we cooperate with many professional freight forwarding companies, can deliver products safely and smoothly to your hands. Delivery time is about 3-20 days after confirmation of payment.
Physical | Nominal Value | Test Method | ||
Density / Specific Gravity | 1.20 g/cm³ | ASTM D792 | ||
Melt Mass-Flow Rate, MFR(300 °C;1.2 kg) | 6.0 g/10min | ASTM D1238 | ||
Molding Shrinkage, Flow(3.2 mm) | 0.50 - 0.80 % | ASTM D955 | ||
Outdoor Suitability | 1 | UL 746C | ||
Rockwell Hardness, R-Scale | 118 | ASTM D785 | ||
Mechanical | Nominal Value | Test Method | ||
Tensile Strength, Yield(50 mm/min;3.2 mm) | 61.8 MPa | ASTM D638 | ||
Tensile Elongation, Break(50 mm/min;3.2 mm) | > 100 % | ASTM D638 | ||
Flexural Modulus(15 mm/min;6.4 mm) | 2260 MPa | ASTM D790 | ||
Flexural Strength(15 mm/min;6.4 mm) | 93.2 MPa | ASTM D790 | ||
Notched Izod Impact(23 °C;3.2 mm) | 780 J/m | ASTM D256 | ||
Thermal | Nominal Value | Test Method | ||
Deflection Temperature Under Load, Unannealed(1.8 MPa;6.4 mm) | 130 °C | ASTM E831;ASTM D648;ISO 11359-2 | ||
RTI Elec | 120 °C | UL 746 | ||
RTI Imp | 105 °C | UL 746 | ||
RTI Str | 120 °C | UL 746 | ||
Flame Rating | UL 94 | |||
0.5 mm | V-2 | |||
1.6 mm | V-2 | |||
2.5 mm | V-2 | |||
3 mm | V-2 |
Polyvinyl chloride has the outstanding characteristics of abundant raw materials (oil, limestone, coke, salt and natural gas), mature manufacturing process, low price, and wide range of uses. It has become the second largest general-purpose resin in the world after polyethylene resin. 29% of the world's total synthetic resin consumption. Polyvinyl chloride is easy to process and can be processed by molding, laminating, injection molding, extrusion, calendering, blow molding, etc. Polyvinyl chloride is mainly used to produce soft plastic products such as artificial leather, films, and wire sheaths, as well as hard plastic products such as plates, doors and windows, pipes and valves. Polyvinyl chloride is flame-retardant (flame retardant value above 40), high chemical resistance (resistant to concentrated hydrochloric acid, 90% sulfuric acid, 60% nitric acid and 20% sodium hydroxide), mechanical strength And the advantages of good electrical insulation. But its heat resistance is poor, with a softening point of 80°C, it starts to decompose and change color at 130°C, and precipitate HCI.
Application Polyvinyl chloride resin is widely used in production of polyvinyl chloride boardy leatheroid, paint and adhesive agents,tec. Paint and adhesive .Division according to application: 1.Building materials: such as UPVC tubing, UPVC pipes, panel and section bars. 2.Packing materials. 3.Electronic materials: such as electronic wires, cables,adhesive tapes and bolts. 4.Furniture and decorating materials,etc. 5.Others: leatheroid, medical disposable products, antiseptic paint,etc.
1. Are you a factory or a trading company?
We are a compnay integrating industry and trade,providing one-stop service.OEM could be accepted.
2. Do you provide samples? Is it free or extra?
Free samples.The sample's freight fee need to be paid by your side.
3. Do you have any certificates related to quality control?
ISO 9001:2008 certification to ensure quality.
4. What should I provide to get a quotation?
Pls inform us of the product type which you need,order quantity,address and specific requirements.The quotation will be made for your reference in time.
5. What kind of payment method do you prefer? What kind of terms are accepted?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union; Paypal,Trade Assurance.
Language Spoken:English.
